ASOE Pipe-in Liner
Description
ASOE Pipe-in Liner is a non-structural liner constructed from Fabric Reinforced Flexible Plastic Pipe (FRFPP). There is no connection between the host pipe and the liner so that the liner works independently from the host pipe.
The liner is a little bit rigid and it will maintain its round shape inside the host pipes even without inside pressure or with little pressure from outside.
Pipe-in Liner is flexible and can easily be pulled from 45 degrees bends or of 90 degrees bend with a 5D radius.
Only coarse pipe cleaning is required before the installation when Pipe-in Liner trenchless pipe rehabilitation solutions are applied.
The installation method requires folding the Pipe-in Liner into a U-shape, before pulling it into the host pipe and expanding it. Once in place, it functions as a leakage-free liner within the host pipe.
Common applications
- Suitable water pressure pipes at normal temperatures: Water mains, fire mains, and rising mains ranging from DN50-DN1400.
- Potable water: ASOE Pipe-in Liner with SPAN approval for potable pipes and drinking water systems.
Features
Enhanced durability
With no structural connection between the liner and the host pipe, it increases durability by operating independently.
Optimal flexibility
The Pipe-in Liner can be easily pulled through 45 or 90-degree bends with a 5D radius.
Maintains shape
No matter how much or little internal or external pressure, the liner maintains its round shape within the host pipe.
Increased capabilities
The Pipe-in Liner requires a small working zone and has limited restrictions on pipe conditions.
Abrasion-resistant
Made from a high-tenacity fabric reinforcement layer, the hose liner is resistant to abrasion.
High burst pressure
Completed assets can withstand pressure between 3000 kPa - 12000 kPa.
50 years
The Pipe-in Liner possesses a long design life of 50 years within a range of circumstances.
Simpler installation
With no resin or curing needed, the installation process can be much more streamlined.
Highly certified
Compliant with several standards, including SPAN Malaysia, AS/NZS 4020:2018 and NSF 61.

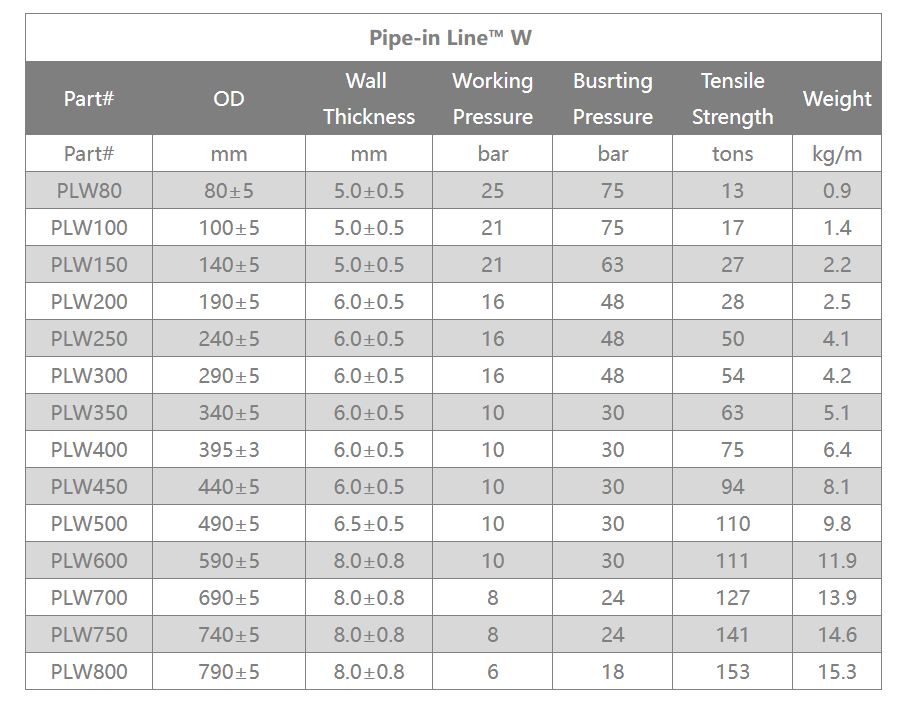

Specification
